Chassis Mounted AC Transformers

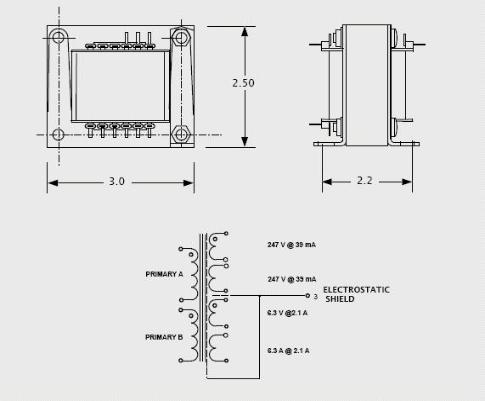

XFA-04301-Scheme

Features

Typical Output Voltage
- 240 VAC for Anode Supply
- 6.3 V for Filament Supply
Isolation Rating
- 2800 VAC

50 WT Series Power Supply Transformers for Tube Audio Amplifiers have Dual Primary Windings designed for 115 or 230 VAC applications. Outputs designed for 240 V for Anode Supply and 6.3 V for Filament Supply. Electrostatic shield is provided between Primary and Secondary Windings, and between Secondary Windings. Other Output Voltages are available. Transformers have lug terminals and brackets for chassis mounting.

Please Contact Us for Detailed Specifications.
