AC Transformers for Tube Amplifiers, 20Wt Series

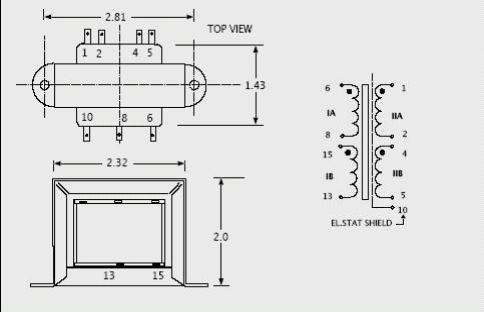

XFA-04302-Scheme

Features

Typical Output Voltage
- 245 VAC @ 40 mA load
- Other Output Voltages are available
Isolation Rating
- 2500 VAC
No Load Current
- 25 mA Max

20 WT Series Power Supply Transformers for Tube Audio Amplifiers have Dual Primary Windings designed for 115 or 230 VAC applications. Electrostatic shield is provided between Primary and Secondary windings. Transformers have lug terminals and brackets for chassis mounting. Typical Output Voltage is 245 VAC @ 40 mA load for each Secondary Winding. Other Output Voltages are available.

Please Contact Us for Detailed Specifications.
